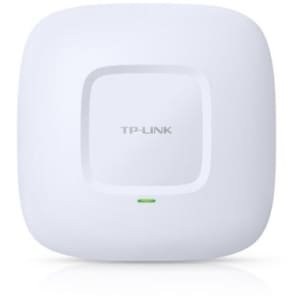

Access Point with Gigabit Wireless Network and N600 Ceiling Mount from TP-Link.
Administrators are able to quickly manage hundreds of EAPs thanks to EAP Controller Software.
Support for Power over Ethernet (802.3af) for simple and inexpensive installation
Easy attachment to a wall or ceiling using a simple mounting design
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication, and rogue access point detection assure the security of WLAN, while Gigabit Ethernet ports enable bandwidth-intensive application or multimedia transferring. Captive portal offers one practical means of authentication for Wi-Fi visitors.
HARDWARE FEATURES
Ethernet Gigabit interface (RJ-45) (Supports IEEE802.3af PoE) Port *
*1 on the console
Lock for physical security
Reset and Power On/Off Buttons for Kensington Lock Slots
Power Source: External or PoE 12VDC / 1.5A Power Supply
Power Consumption 9.6 W
180*180*47.5mm (W x D x H) or 7.1 x 7.1 x 1.9 in
Internal 4* 4dBi Omni Mounting Ceiling/Wall Mounting Antenna Type (Kits included)
Yes, watch dog
WIRELESS FEATURES
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, and IEEE 802.11a Wireless Standards Frequencies 2.4GHz and 5GHz
Signal Rate 11n: 300Mbps or more (dynamic)
Up to 54Mbps with 11g (dynamic)
11b: 11Mbps or more (dynamic)
Communication Sensitivity
5GHz\s300M：
-68dBm@10%PER\s150M：
-72dBm@10%PER\s54M：
-73dBm@10%PER\s2.4GHz
300M: -71 dBm At 10% PER 150 m -75 dBm @ % PER 54M -78 dBm at 10% for 11 m: -93 dBm @ 8 % PER 6 m: -92 dBm At 10% PER 1 m -96 dBm at 8% per
Deliver Power
FCC:\s<26dBm(2.4GHz)\s<20dBm(5GHz)
CE:\s<20dBm
Wireless capabilities
A number of SSIDs (up to 16 SSIDs)
Wireless Radio Automatic Channel Assignment can be turned on or off.
Control of Transmit Power (Adjust Transmit Power on dBm)
WMM QoS Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Online Management CLI (Command Line Interface) Management for HTTP/HTTPS VLAN Yes OTHERS FCC, RoHS Certification Contents of the package N600 Wireless Gigabit Ceiling Mount Access Point Mounting Kits for the Auranet EAP220 Power Adapter
System requirements and resource CD installation instructions
Windows XP, Vista, Windows 7, Windows 8, and Windows 10
Environment
Operating Range: 32°F to 104°F (0°C to 40°C)
Storage Range: -40°C to 70°C (-40°F to 158°F)
Non-condensing Operating Humidity: 10%–90% 5%–90% non-condensing humidity
